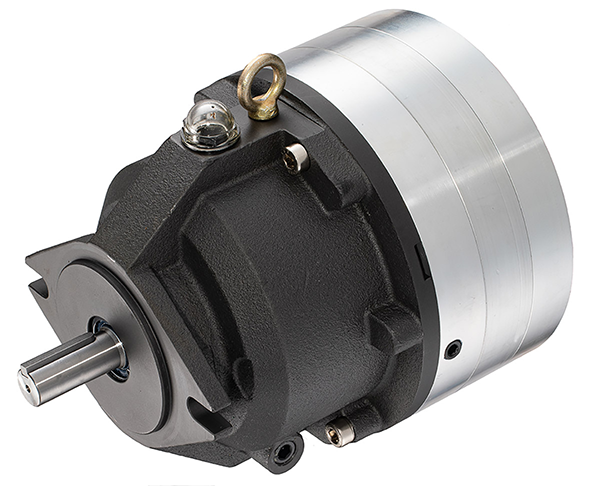

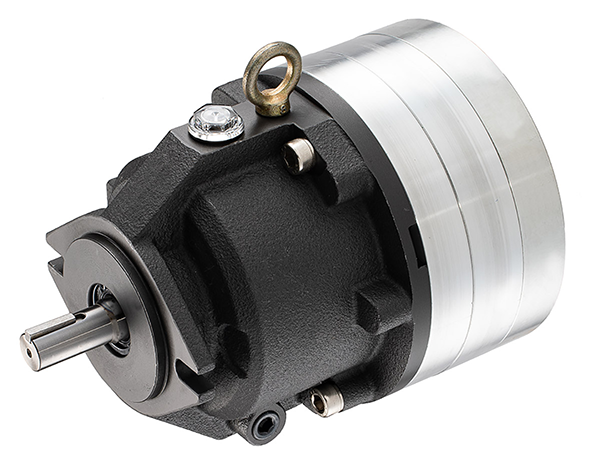

MPD-High pressure diaphragm pump

Production information

1. Built-in patented circulation pump, it makes a low working
     temperature, and extending the service life of pump.
2. Special design,  it can prevent the pump from the damage
     of opertion without liquid.
3. High pressure, high efficiency diaphragm pump, which can
     be used for high viscosity liquids (160 cSt).
4. Minimum 300 rpm , 1200rpm.
     This character make MPD pump can be combined with
     electric servo motor as energy saving system.
5. Maximum working pressure: 100 bar.
6. MPD pump can be use in pure water
     systems. It can reduce the using of coolant in cutting system,
     which will be friendly of environment.
7. Tolerate higher particles, as a non-contact pump, MPD pump
     can take maximum particles is 500 micron.
